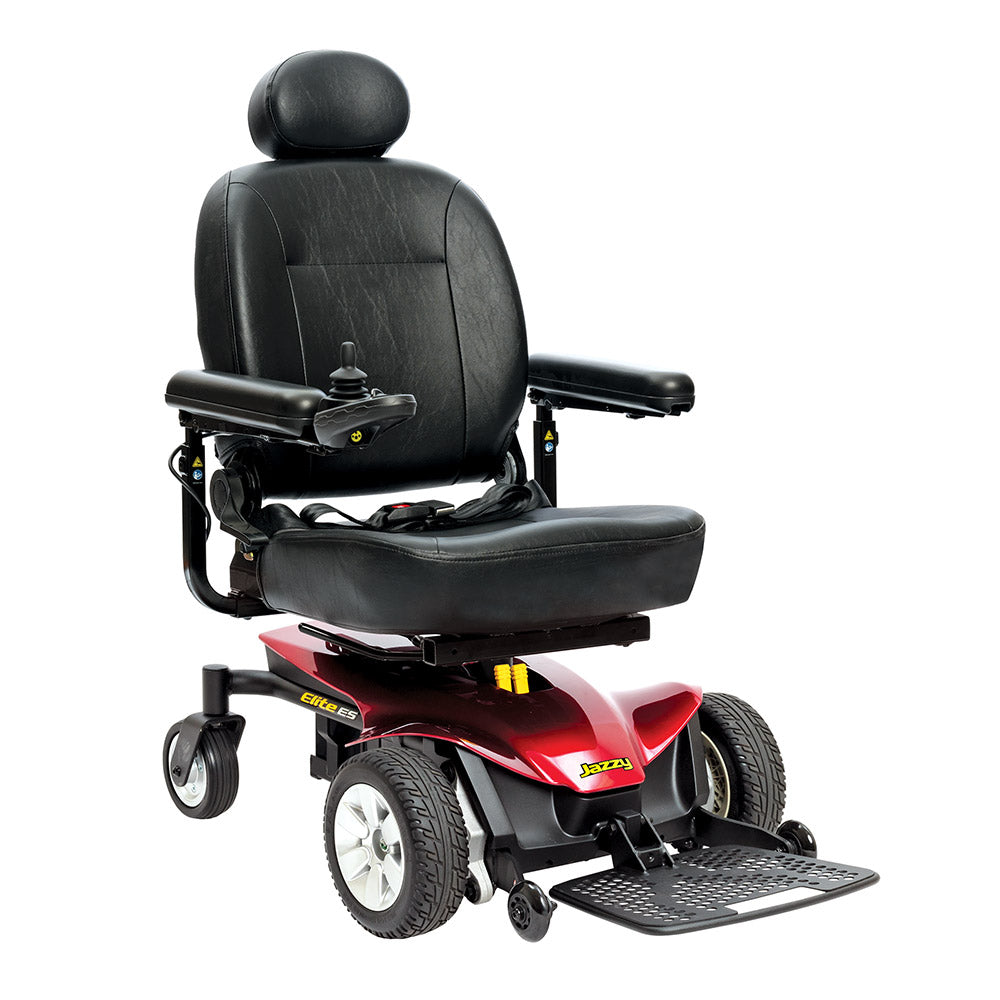

The Jazzy® Elite ES delivers a reliable blend of power, performance and style for your active lifestyle.
The in-line, front-wheel drive technology provides tight turns around corners for optimal indoor maneuverability in small spaces and large front wheels for extra absorption over obstacles.
With superb climbing capabilities combined with front anti-tip wheels for transitioning over grade changes easily, the Jazzy Elite ES handles various terrains with ease.
- In-line, front-wheel drive technology

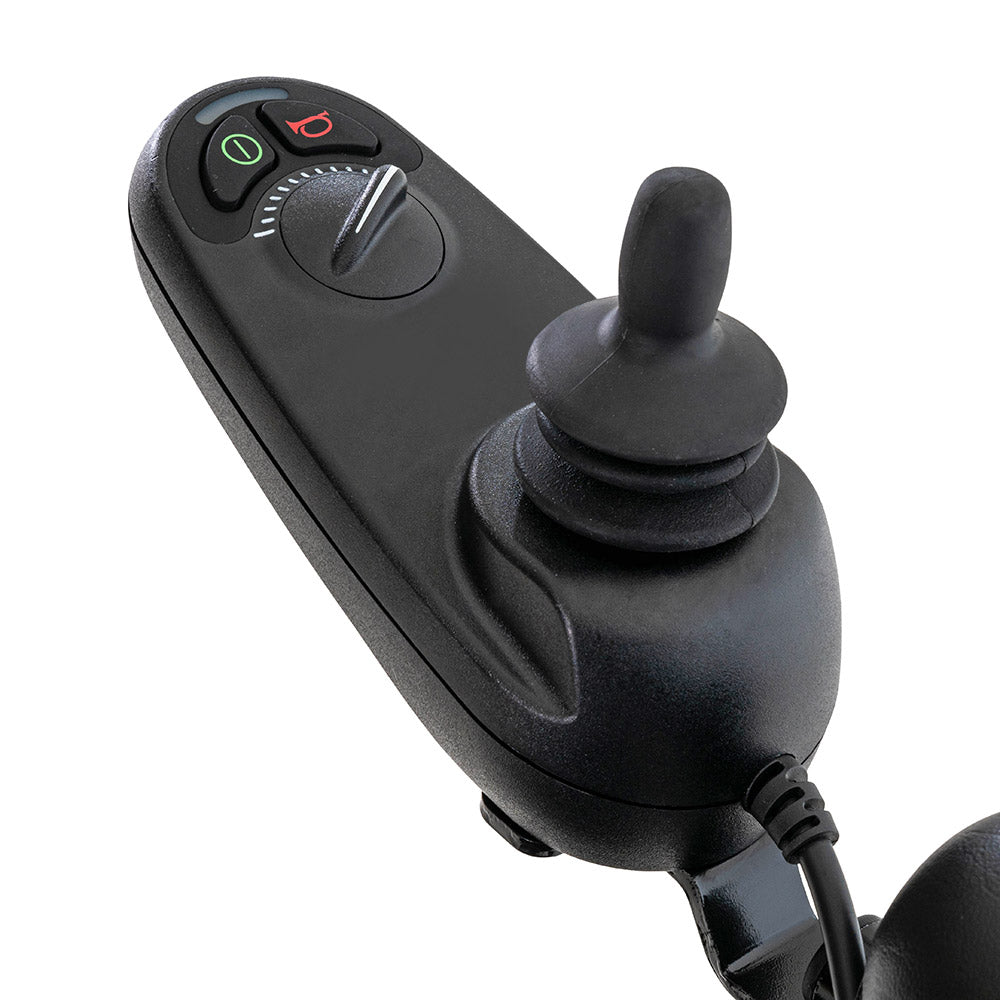

- 40 amp, PG GC 3 controller
- Simple main frame design for easy serviceability
- Comfort high-back seat with headrest
- Jazzy® Armor® controller guard to protect from daily wear and tear
- Basic Jazzy Armor shroud decals
| Model |
Jazzy® Elite ES
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24.75" |
| Width1 | 22.75" |
| Length1,2 | 34.75"/41" (with footplate) |
| Maximum Speed3 | Up to 4 mph |
| Ground Clearance1 | 1.85" at motors |
| Front Wheels | 3" solid anti-tips |

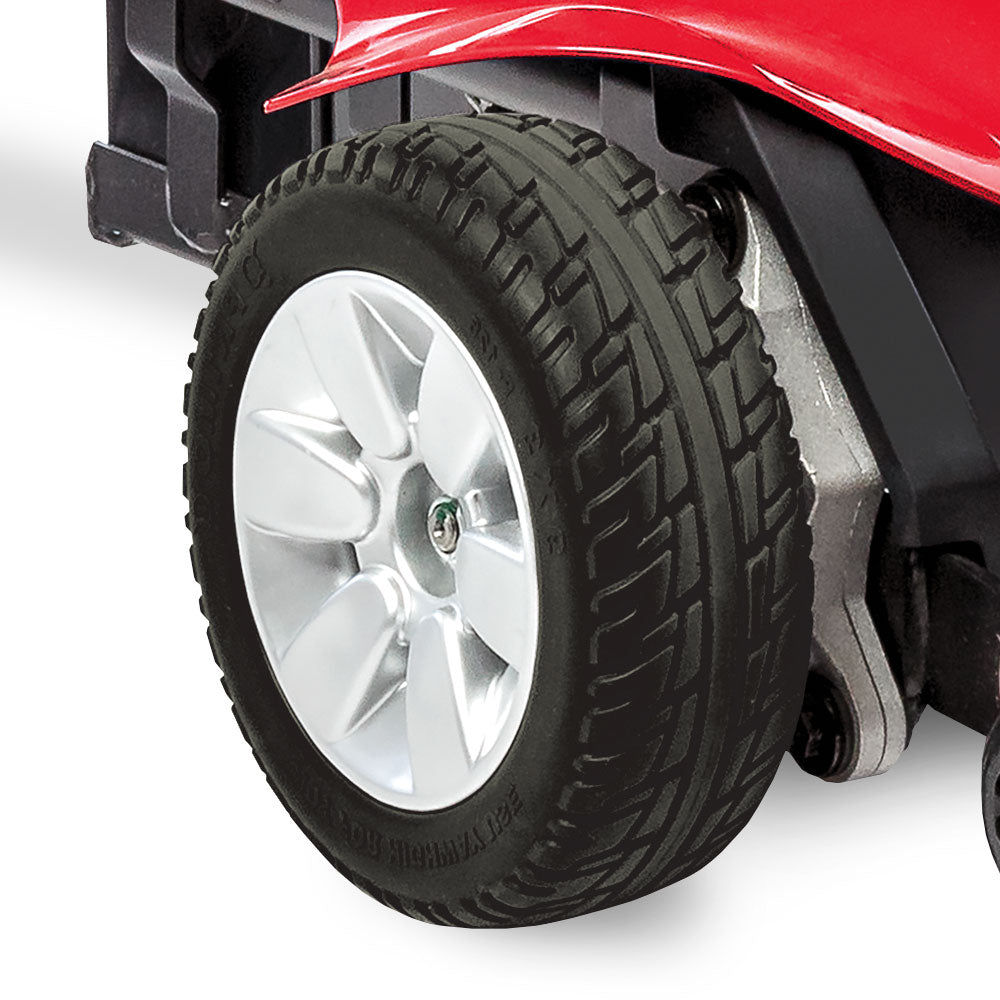

| Drive Wheels | 9" solid |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two-motor, in-line, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 20"W x 20"D |
| High-Back Seat-to-Floor Range | 21.5" - 23.5" |
| Standard Electronics | 40A, PG GC3 |
| Battery Size (2 required) | 12 volt, U-1 |
| Standard Battery Charger | 3.5A, off-board |
| Per-Charge Range3,6 | Up to 15 miles |
| Battery Weight5 | 25 lbs. each |
| Weight of Heaviest Piece4 | 69 lbs. |
| Standard Seat Weight | 50.2 lbs. (comfort, high-back) |
| Standard Seat Size | 16"x16"-18"; 18"x18"-20"; 20"x18"-20" |
| Medicare Code Coverage | Group 2: Standard (K0822/K0823) |
| Warranty | 5-year limited warranty on frame; 13-month limited warranty on electronics; 13-month limited warranty on drive motors; 13-month limited on batteries |
