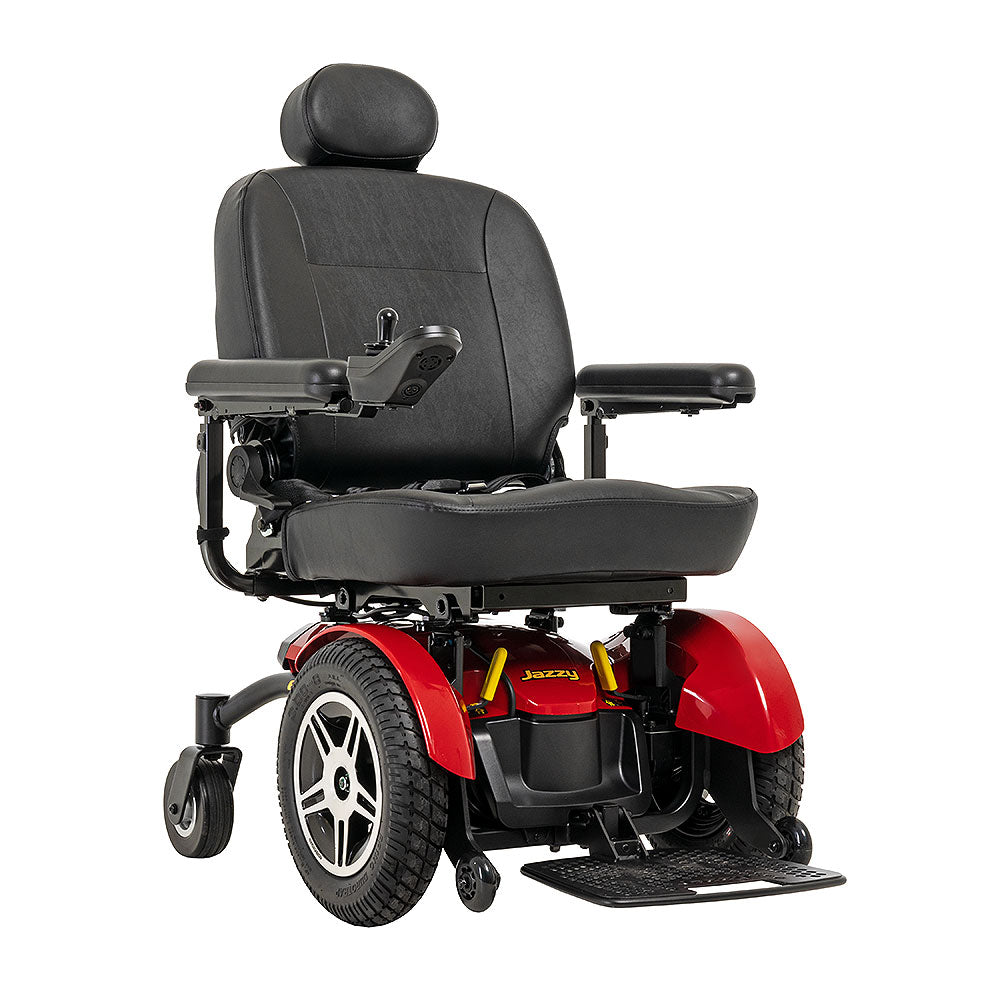

The Jazzy® Elite HD features two-motor, front-wheel drive technology and heavy-duty construction.
The Jazzy Elite HD features 14” drive wheels for enhanced outdoor performance combined with a front-wheel drive design to provide tight turns for optimal indoor maneuverability in small spaces.
Large front wheels add extra absorption for superb climbing capabilities and combine with front antitip wheels for handling various terrains with ease.
- Enhanced 450 lbs. weight capacity
- Front-wheel drive design for excellent maneuverability
- 14" knobby tires and optimum weight distribution provide superior traction
- Larger foot platform
- 60 amp controller
- 5-year limited on frame; 13- month limited on electronics; 13-month limited on drive motors; 13-month limited on batteries
| Model | Jazzy Elite HD |
|---|---|
| Weight Capacity | 450 lbs. |
| Maximum Speed* | 4 mph |
| Ground Clearance | 3” |
| Turning Radius** | 24” |
| Overall Length** | 35.5” |
| Overall Width | 24.25” |
| Seat-to-Floor Range | 20”- 22” |
| Front Wheels | 3” solid anti-tips |
| Drive Wheels | 14” foam filled |
| Rear Wheels | 6” solid casters |
| Suspension Type | Limited |
| Range Per Charge* | Up to 14.4 miles |
| Total Weight with Batteries** | Base: 99 lbs. Seat: 18” wide - 51.8 lbs., 20” wide - 54 lbs., 22” wide - 57.6 lbs. Batteries: 37 lbs. each |
| Heaviest Piece When Disassembled** | 99 lbs. (base) |
| Standard Electronics | 50A, Dynamic LiNX controller |
| Battery Requirements | (2) 12 volt, NF-22 batteries |
| Battery Charger | 5 amp, off-board |
| Warranty | Frame: Lifetime limited Drivetrain: 13-month Electronics: 13-month Battery: 13-month |
